VELUX SKYLIGHTS SIZES
When choosing a skylight, one of the most important considerations is size.
The skylight should be large enough to let in plenty of light, but not so large that it causes excessive heat gain or glare.
It's also important to consider the shape of the skylight. A skylight that is too deep will not admit enough light, while a skylight that is too shallow will cause excessive heat gain.
The best skylights are those that are just deep enough to admit light without causing excessive heat gain or glare.
Another factor to consider is the location of the skylight. A skylight that is located too close to a window will cause glare, while a skylight that is located too far from a window will not admit enough light.
The best location for a skylight is one that is midway between two windows. By following these guidelines, you can be sure to choose the right size skylight for your needs.

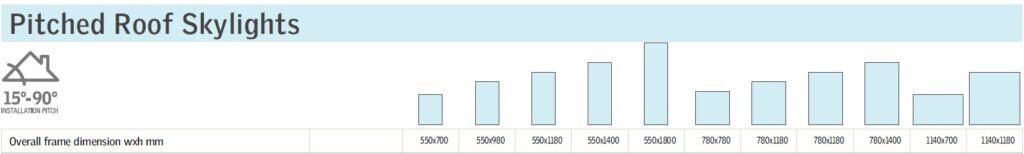

PITCHED ROOF VELUX SKYLIGHT SIZES
Velux skylights offers a variety of models in this size, including the VS, VSS, VSE and FS models. Each model has its own unique features, so it's important to choose the one that best suits your needs.
Note: For roofs below 15° pitch, VSS/VSE skylights need to be raised to 15° and custom flashed.
PITCHED ROOF SKYLIGHTS BY SIZE
The following range of Velux skylights are available in the 550 x 700 size and designed to be installed into a pitched roof construction.
This size skylight is designed to fit an overall frame dimension of width - 550 mm x height 700 mm.
VS
- Size Code - CO1
- Type - Opening
- Operated - Manual
- Glazing - High Performance double glazing
- SKU - VS C01 2004A
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VSS Solar
- Size Code - CO1
- Type - Opening
- Operated - Solar
- Glazing - High Performance double glazing
- SKU - VSS C01 2004
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VSE Electric
- Size Code - CO1
- Type - Opening
- Operated - Electric
- Glazing - High Performance double glazing
- SKU - VSE C01 2004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
FS Fixed
- Size Code - CO1
- Type - Fixed - non-opening
- Operated - N/A
- Glazing - High Performance double glazing
- SKU - FS C01 2004A
- Blinds Available - Manual Honeycomb Blackout, Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 550 x 1800 size and designed to be installed into a pitched roof construction.
This size skylight is designed to fit an overall frame dimension of width - 550 mm x height 1800 mm
- Size Code - C12
- Type - Fixed - non-opening
- Operated - N/A
- Glazing - High Performance double glazing
- SKU - FS C12 2004A
- Blinds Available - Manual Honeycomb Blackout, Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 780 x 780 size and designed to be installed into a pitched roof construction.
This size skylight is designed to fit an overall frame dimension of width - 780 mm x height 780 mm.
VS
- Size Code - MO2
- Type - Opening
- Operated - Manual
- Glazing - High-Performance double glazing
- SKU - VS M02 2004AD
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VSS Solar
- Size Code - MO2
- Type - Opening
- Operated - Solar
- Glazing - High-Performance double glazing
- SKU - VSS M02 2004AE
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
FS Fixed
- Size Code - MO2
- Type - Fixed - non-opening
- Operated - N/A
- Glazing - High Performance double glazing
- SKU - FS M02 2004AD
- Blinds Available - Manual Honeycomb Blackout, Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 780 x 980 size and designed to be installed into a pitched roof construction.
This size skylight is designed to fit an overall frame dimension of width - 780 mm x height 980 mm.
VS
- Size Code - MO4
- Type - Opening
- Operated - Manual
- Glazing - High Performance double glazing
- SKU - VS M04 2004A
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VSS Solar
- Size Code - MO4
- Type - Opening
- Operated - Solar
- Glazing - High Performance double glazing
- SKU - VSS M04 2004
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VSE Electric
- Size Code - MO4
- Type - Opening
- Operated - Electric
- Glazing - High Performance double glazing
- SKU - VSE M04 2004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
FS Fixed
- Size Code - MO4
- Type - Fixed - non-opening
- Operated - N/A
- Glazing - High Performance double glazing
- SKU - FS M04 2004A
- Blinds Available - Manual Honeycomb Blackout, Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 780 x 1180 size and designed to be installed into a pitched roof construction.
This size skylight is designed to fit an overall frame dimension of width - 780 mm x height 1180 mm.
VS
- Size Code - MO6
- Type - Opening
- Operated - Manual
- Glazing - High Performance double glazing
- SKU - VS M06 2004A
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VSS Solar
- Size Code - MO6
- Type - Opening
- Operated - Solar
- Glazing - High Performance double glazing
- SKU - VSS M06 2004
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VSE Electric
- Size Code - MO6
- Type - Opening
- Operated - Electric
- Glazing - High Performance double glazing
- SKU - VSE M06 2004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
FS Fixed
- Size Code - MO6
- Type - Fixed - non-opening
- Operated - N/A
- Glazing - High Performance double glazing
- SKU - FS M06 2004A
- Blinds Available - Manual Honeycomb Blackout, Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 780 x 1400 size and designed to be installed into a pitched roof construction.
This size skylight is designed to fit an overall frame dimension of width - 780 mm x height 1400 mm.
VS
- Size Code - MO8
- Type - Opening
- Operated - Manual
- Glazing - High Performance double glazing
- SKU - VS M08 2004A
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VSS Solar
- Size Code - MO8
- Type - Opening
- Operated - Solar
- Glazing - High Performance double glazing
- SKU - VSS M08 2004
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VSE Electric
- Size Code - MO8
- Type - Opening
- Operated - Electric
- Glazing - High-Performance double glazing
- SKU - VSE M08 2004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
FS Fixed
- Size Code - MO8
- Type - Fixed - non-opening
- Operated - N/A
- Glazing - High Performance double glazing
- SKU - FS M08 2004A
- Blinds Available - Manual Honeycomb Blackout, Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 1140 x 700 size and designed to be installed into a pitched roof construction.
This size skylight is designed to fit an overall frame dimension of width - 1140 mm x height 700 mm.
VS
- Size Code - SO1
- Type - Opening
- Operated - Manual
- Glazing - High Performance double glazing
- SKU - VS S01 2004A
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VSS Solar
- Size Code - SO1
- Type - Opening
- Operated - Solar
- Glazing - High Performance double glazing
- SKU - VSS S01 2004
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VSE Electric
- Size Code - SO1
- Type - Opening
- Operated - Electric
- Glazing - High Performance double glazing
- SKU - VSE S01 2004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
FS Fixed
- Size Code - SO1
- Type - Fixed - non-opening
- Operated - N/A
- Glazing - High Performance double glazing
- SKU - FS S01 2004A
- Blinds Available - Manual Honeycomb Blackout, Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 1140 x 1180 size and designed to be installed into a pitched roof construction.
This size skylight is designed to fit an overall frame dimension of width - 1140 mm x height 1180 mm.
VS
- Size Code - SO6
- Type - Opening
- Operated - Manual
- Glazing - High Performance double glazing
- SKU - VS S06 2004A
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VSS Solar
- Size Code - SO6
- Type - Opening
- Operated - Solar
- Glazing - High Performance double glazing
- SKU - VSS S06 2004
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VSE Electric
- Size Code - SO6
- Type - Opening
- Operated - Electric
- Glazing - High Performance double glazing
- SKU - VSE S06 2004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
FS Fixed
- Size Code - SO6
- Type - Fixed - non-opening
- Operated - N/A
- Glazing - High Performance double glazing
- SKU - FS S06 2004A
- Blinds Available - Manual Honeycomb Blackout, Solar Honeycomb Blackout, Solar Blockout

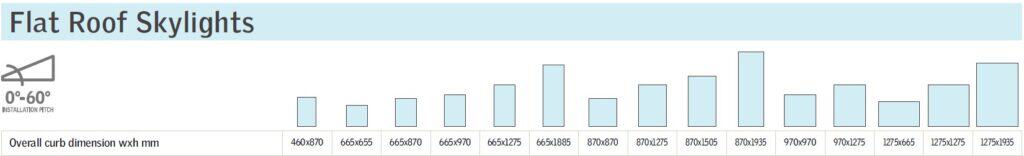

FLAT ROOF VELUX SKYLIGHT SIZES
Velux skylights offers a variety of models in this size, including the VS, VSS, VSE and FS models. Each model has its own unique features, so it's important to choose the one that best suits your needs.
Note: For roofs below 15° pitch, VSS/VSE skylights need to be raised to 15° and custom flashed.
FLAT ROOF SKYLIGHTS BY SIZE
The following range of Velux skylights are available in the 460 x 870 size and designed to be installed into a flat roof construction.
This size skylight is designed to fit an overall frame dimension of width - 460 mm x height 870 mm.
FCM
- Size Code - 1430
- Type - Fixed
- Operated - N/A
- Glazing - High-Performance double glazing
- SKU - FCM 1430 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 665 x 665 size and designed to be installed into a flat roof construction.
This size skylight is designed to fit an overall frame dimension of width - 665 mm x height 665 mm.
FCM
- Size Code - 2222
- Type - Fixed
- Operated - N/A
- Glazing - High-Performance double glazing
- SKU - FCM 2222 2004AD
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCM
- Size Code - 2222
- Type - Opening
- Operated - Manually
- Glazing - High-Performance double glazing
- SKU - VCM 2222 2004AD
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCS
- Size Code - 2222
- Type - Opening
- Operated - Solar
- Glazing - High-Performance double glazing
- SKU - VCS 2222 2004AD
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 665 x 870 size and designed to be installed into a flat roof construction.
This size skylight is designed to fit an overall frame dimension of width - 665 mm x height 870 mm.
FCM
- Size Code - 2230
- Type - Fixed
- Operated - N/A
- Glazing - High-Performance double glazing
- SKU - FCM 2230 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 665 x 970 size and designed to be installed into a flat roof construction.
This size skylight is designed to fit an overall frame dimension of width - 665 mm x height 970 mm.
FCM
- Size Code - 2234
- Type - Fixed
- Operated - N/A
- Glazing - High-Performance double glazing
- SKU - FCM 2234 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCM
- Size Code - 2234
- Type - Opening
- Operated - Manually
- Glazing - High-Performance double glazing
- SKU - VCM 2234 2004AD
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCS
- Size Code -2234
- Type - Opening
- Operated - Solar
- Glazing - High-Performance double glazing
- SKU - VCS 2234 2004AD
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 665 x 1275 size and designed to be installed into a flat roof construction.
This size skylight is designed to fit an overall frame dimension of width - 665 mm x height 1275 mm.
FCM
- Size Code - 2246
- Type - Fixed
- Operated - N/A
- Glazing - High-Performance double glazing
- SKU - FCM 2246 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCM
- Size Code - 2246
- Type - Opening
- Operated - Manually
- Glazing - High-Performance double glazing
- SKU - VCM 2246 2004AD
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCS
- Size Code -2246
- Type - Opening
- Operated - Solar
- Glazing - High-Performance double glazing
- SKU - VCS 2246 2004AD
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 665 x 1885 size and designed to be installed into a flat roof construction.
This size skylight is designed to fit an overall frame dimension of width - 665 mm x height 1885 mm.
FCM
- Size Code - 2270
- Type - Fixed
- Operated - N/A
- Glazing - High-Performance double glazing
- SKU - FCM 2270 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 870 x 870 size and designed to be installed into a flat roof construction.
This size skylight is designed to fit an overall frame dimension of width - 870 mm x height 870 mm.
FCM
- Size Code - 3030
- Type - Fixed
- Operated - N/A
- Glazing - High-Performance double glazing
- SKU - FCM 3030 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCM
- Size Code - 3030
- Type - Opening
- Operated - Manually
- Glazing - High-Performance double glazing
- SKU - VCM 3030 2004AD
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCS
- Size Code - 3030
- Type - Opening
- Operated - Solar
- Glazing - High-Performance double glazing
- SKU - VCS 3030 2004AD
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 870 x 1275 size and designed to be installed into a flat roof construction.
This size skylight is designed to fit an overall frame dimension of width - 870 mm x height 1275 mm.
FCM
- Size Code - 3046
- Type - Fixed
- Operated - N/A
- Glazing - High-Performance double glazing
- SKU - FCM 3046 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCM
- Size Code - 3046
- Type - Opening
- Operated - Manually
- Glazing - High-Performance double glazing
- SKU - VCM 3046 2004AD
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCS
- Size Code - 3046
- Type - Opening
- Operated - Solar
- Glazing - High-Performance double glazing
- SKU - VCS 3046 2004AD
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 870 x 1505 size and designed to be installed into a flat roof construction.
This size skylight is designed to fit an overall frame dimension of width - 870 mm x height 1505 mm.
FCM
- Size Code - 3055
- Type - Fixed
- Operated - N/A
- Glazing - High-Performance double glazing
- SKU - FCM 3055 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 970 x 970 size and designed to be installed into a flat roof construction.
This size skylight is designed to fit an overall frame dimension of width - 970 mm x height 970 mm.
FCM
- Size Code - 3434
- Type - Fixed
- Operated - N/A
- Glazing - High-Performance double glazing
- SKU - FCM 3434 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCM
- Size Code - 3434
- Type - Opening
- Operated - Manually
- Glazing - High-Performance double glazing
- SKU - VCM 3434 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCS
- Size Code - 3434
- Type - Opening
- Operated - Solar
- Glazing - High-Performance double glazing
- SKU - VCS 3434 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 970 x 1275 size and designed to be installed into a flat roof construction.
This size skylight is designed to fit an overall frame dimension of width - 970 mm x height 1275 mm.
FCM
- Size Code - 3446
- Type - Fixed
- Operated - N/A
- Glazing - High-Performance double glazing
- SKU - FCM 3446 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCM
- Size Code - 4622
- Type - Opening
- Operated - Manually
- Glazing - High-Performance double glazing
- SKU - VCM 4622 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCS
- Size Code - 4622
- Type - Opening
- Operated - Solar
- Glazing - High-Performance double glazing
- SKU - VCS 4622 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
The following range of Velux skylights are available in the 1275 x 1275 size and designed to be installed into a flat roof construction.
This size skylight is designed to fit an overall frame dimension of width - 1275 mm x height 1275 mm.
FCM
- Size Code - 4646
- Type - Fixed
- Operated - N/A
- Glazing - High-Performance double glazing
- SKU - FCM 4646 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCM
- Size Code - 4646
- Type - Opening
- Operated - Manually
- Glazing - High-Performance double glazing
- SKU - VCM 4646 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
VCS
- Size Code - 4646
- Type - Opening
- Operated - Solar
- Glazing - High-Performance double glazing
- SKU - VCS 4646 0004AB
- Blinds Available - Solar Honeycomb Blackout, Solar Blockout
Standard Size Velux Skylights Available in Australia
The VELUX standard skylight sizes that are commonly available in Australia are based on the metric system and are listed by the width and height of the skylight, and is measured in millimetres.
In Australia, one of the most common skylight size is 900mm x 600mm. This skylight size is suitable for most rooms, providing a good amount of natural light.
Another popular skylight size is 1200mm x 900mm. This skylight size is ideal for larger rooms or areas where you want more natural light.
The standard skylight sizes are designed to fit into standard roof openings, and can be installed using standard roofing materials and methods.
VELUX BROCHURES
VELUX SKYLIGHT INSTALLATION MANUALS
SKYLIGHT INSTALLATION
Listed below is the complete range of VELUX skylight installation instructions for the deck and curb mounted installations designed for roof pitches 15 - 90 degrees and roofing materials as specified for the VELUX flashings.
Simply click on the brochure to download.
FLASHING INSTALLATION
You can find the complete range of flashing installation instructions for VELUX skylight products listed below.
Instructions for EDW, EDL & EKW flashing kits can be utilised to install all VELUX skylights offered at No1 Roofing.
Click on the Brochure to download.
VELUX DATA SHEETS
Listed below is the complete range of VELUX Product Data Sheets and downloads for all the VELUX product range with Solar Powered Skylights and Sun Tunnels.
Simply click on the brochure to download.
